NOWATCH B: How to remove and attach straps

• Good-to-knows
• How to remove the straps from your NOWATCH case
• How to attach the straps to your NOWATCH case

Good-to-knows

• NOWATCH straps feature a quick-release spring bar, making it easy to swap them out as needed.
• The buckle strap is attached to the lug at the top of the NOWATCH case (the 12:00 position).
• The tail strap is attached to the lug at the bottom of the case (the 6:00 position).
• The crown (button) on the case should always point to 8 o’clock when worn, whether you wear the device on your left or right wrist.

How to remove the straps from your NOWATCH case

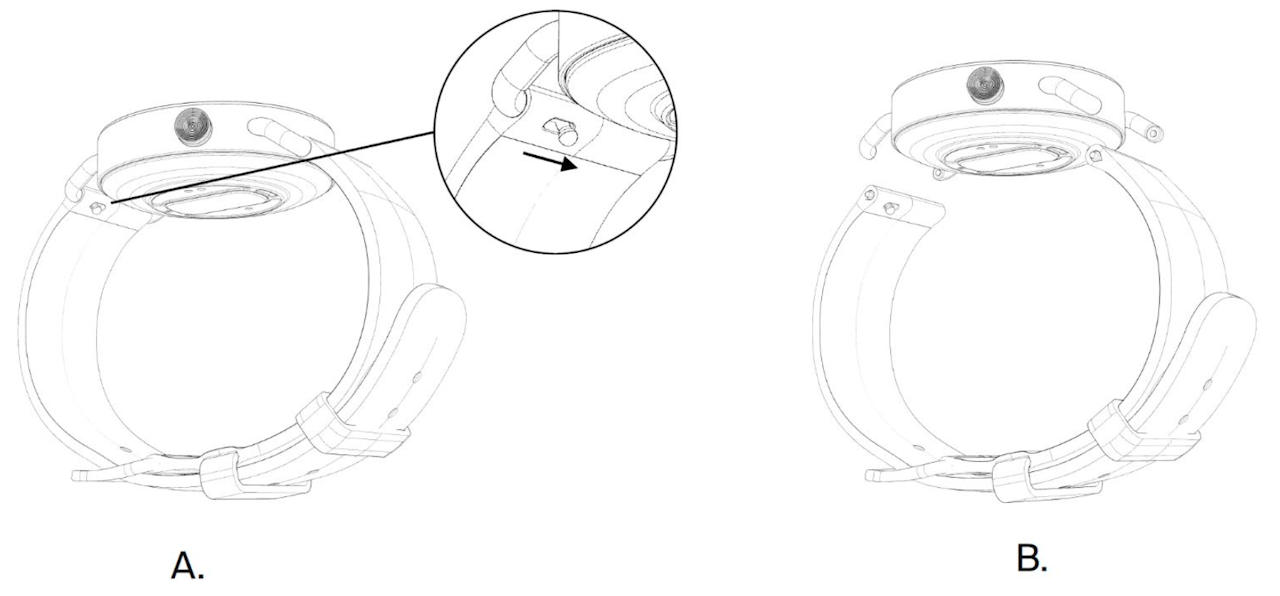

1. Press the small pin inward (see A) to release the spring bar from the lugs (see B).
2. Gently pull the strap away from the case.

How to attach the straps to your NOWATCH case

1. Pull the small pin on your strap sideways to retract the spring bar on the strap.
2. Place the strap between the lugs on the watch case while keeping the spring bar retracted.
3. Release the pin so the spring bar locks into place securely.
